Miner B-53

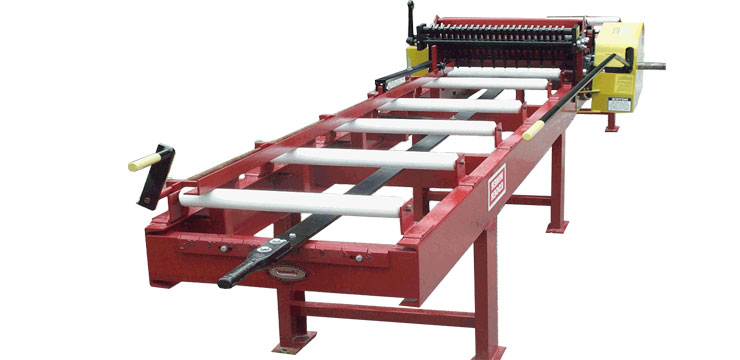

Miner Model 53 Stationary Board Edger comes in two available models teh A & B.

Specifications

  • Feed speed: 90 feet per minute
  • Board width maximum: 30 3/4 inches
  • Maximum distance between saws: 18 inches
  • Board thickness maximum : 4 inches
  • Mandrel speed RPM 2,100 RPM
  • Saw diameter: 14 inches
  • Saw collar diameter: 4 1/4 inches
  • Mandrel diameter: 1 15/16 inches
  • Pressure roll diameter: 4 1/2 inches
  • Feed roll diameter: 2 1/4 inches
  • Infeed table length: 5 feet 4 inches
  • Outfeed table length: 7 feet 10 inches
  • Table width: 31 inches
  • Overall length 16 feet

Available Options

Get a complete list of options and configurations by giving us a call.
