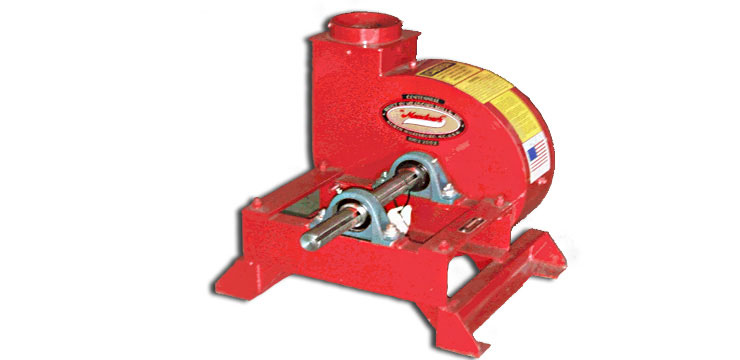

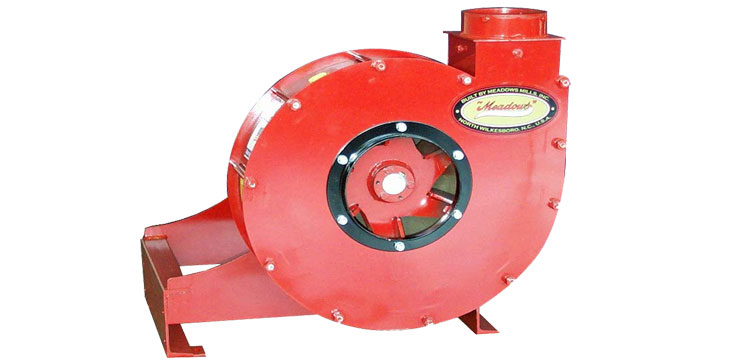

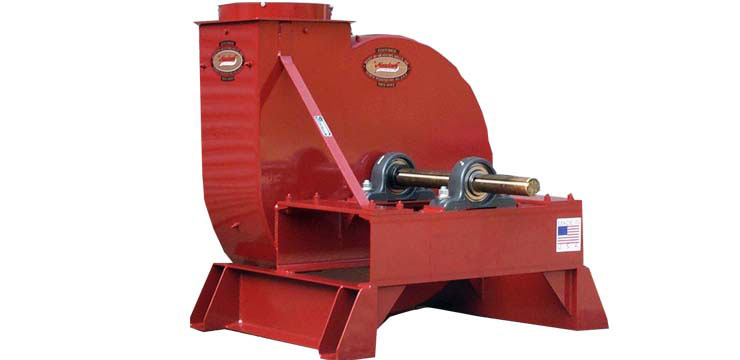

Model #4 Fan

Meadows industrial materials-handling fans feature open-type radial-blade fan wheels and are well suited for installations involving exhaust, material conveying, pollution control, air circulation, and a variety of other industrial applications.

Specifications

  • Fan Wheel Size(Dia. x W x # Blades): 18" x 6 1/2" x 6
  • Recommended Operating RPM: 3000-3600 RPM
  • Recommeneded Horsepower: 20 to 40 HP
  • Shaft Diameter: 1 11/16"
  • Inlet Diameter: 10"
  • Outlet Diameter: 8"
  • Bearing Type: SXR 1 11/16" 2 bolt flange bearing

Available Options

There are several different models available, with differing sizes and capacities.

Get a complete list of options and configurations by giving us a call.
