Model #1 Fan

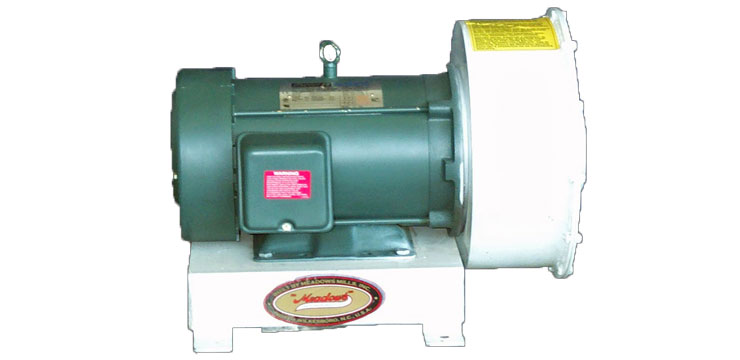

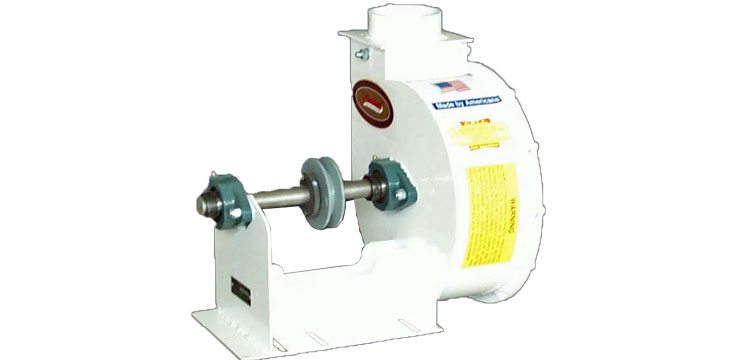

Meadows industrial materials-handling fans feature open-type radial-blade fan wheels and are well suited for installations involving exhaust, material conveying, pollution control, air circulation, and a variety of other industrial applications. Fans can be belt driven or motor driven.


  • Fan Wheel Size(Dia. x W x # Blades): 9" x 2 3/4" x 4
  • Recommended Operating RPM: 3000-3600 RPM
  • Recommeneded Horsepower: 2 to 5 HP
  • Shaft Diameter: 1 1/8"
  • Inlet Diameter: 5"
  • Outlet Diameter: 3"
  • Bearing Type: SXR 1" 2 bolt flange bearing

Available Options

There are several different models available, with differing sizes and capacities.

Get a complete list of options and configurations by giving us a call.
