Specifications
- Handset models will be equipped with one axle with two 16" x 8 lug wheels with 7 1/2" x 16" x 10-ply truck tires
- Hydraulic models will be equipped with one axle with four wheels and tires (specifications as above)
- Carriage frame constructed from 3" x 4" tube
- Ratchet cable tightner
- 6 1/2" diameter carriage wheels,
- Track scrapes
- Carriage axles, 1 11/16" diameter
- Steel headblocks with replaceable face plates, 33" opening
- Headblocks available with single or double #50 adjustment chains
- Replaceable UHMW wear strips between the knee and the base
- 1 11/16" diameter set shaft
- 1 11/16" diameter cable drum shaft standard on handset mobile sawmills
- 2 3/16" diameter cable drum shaft standard on hydraulic mobile sawmills
- Cable drum is 11" diameter with a 12" face and uses 1/2" cable
- Mandrel is 2 7/16" diameter with 6" saw collars, lengths vary

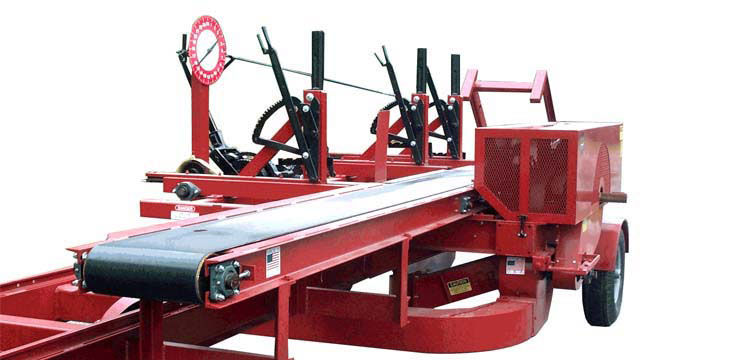

- Offbearing conveyor driven from the mandrel, available in either 14' length with 16" belt or 75" length with 16" belt, custom lengths are available
- Saw guide with remote adjustment arms
Available Options
There are many options available for the handset and hydrualic models. Here are just a few:
- Dial figure scale
- Vertical figure scale
- May be equipped with Model #2 or #4 material handling fan
Get a complete list of options and configurations by giving us a call.
