Specifications

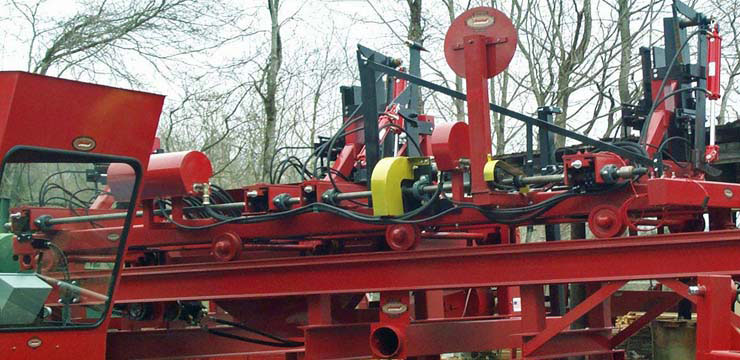

- Carriage frame constructed from 4" x 6" tube
- Ratchet cable tightner
- 8" diameter carriage wheels with tapered roller bearings in wheel hubs
- Track scrapes or Super Scrapes (covers entire wheel)
- Carriage axles, 1 11/16" diameter
- Carriage axles attached to carriage with cast steel hangers (axle is stationary and wheel spins)
- Standard track frames either 45' or 50', custom lengths are available

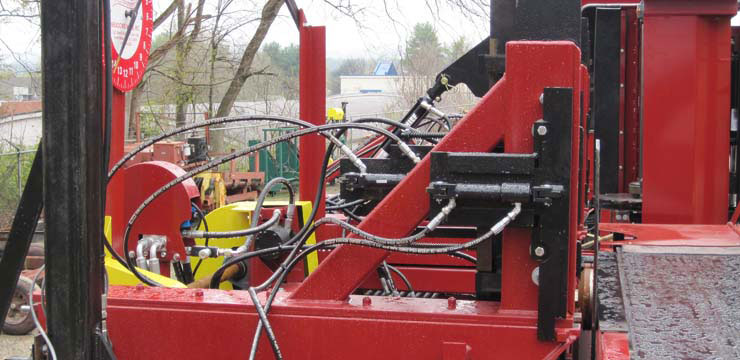

- Standard and Heavy headblocks offered standard with replaceable face plates, 39" opening
- Replaceable UHMW wear strips between the knee and the base
- 1 11/16" diameter set shaft
- 1 15/16" diameter cable drum shaft standard on handset #2 sawmills
- 2 3/16" diameter cable drum shaft standard on hydraulic #2 sawmills
- Cable drum is 11" diameter with a 18" face and uses 9/16" cable
- Mandrel is 2 15/16" diameter with 8" saw collars, lengths vary
- Offbearing conveyor driven from the mandrel, available in either 14' length with 18" belt or 75" length with 18" belt, custom lengths are available
- Saw guide with remote adjustment arms
Available Options
There are many options available for the handset and hydrualic models. Here are just a few:
- Dial figure scale
- Vertical figure scale
- May be equipped with Model #2 or #4 material handling fan
- Top Saw
- Mobile Configuration
Get a complete list of options and configurations by giving us a call.
