Deluxe 4"

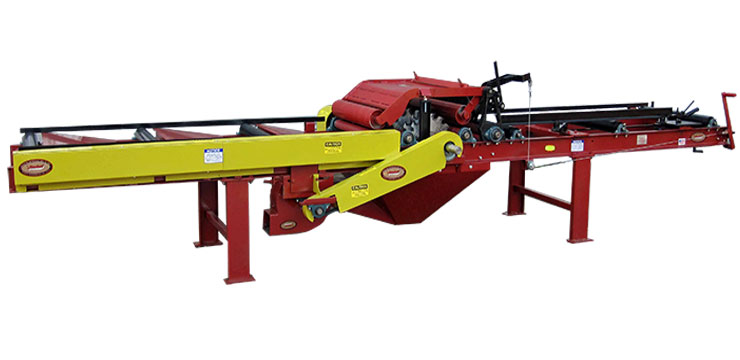

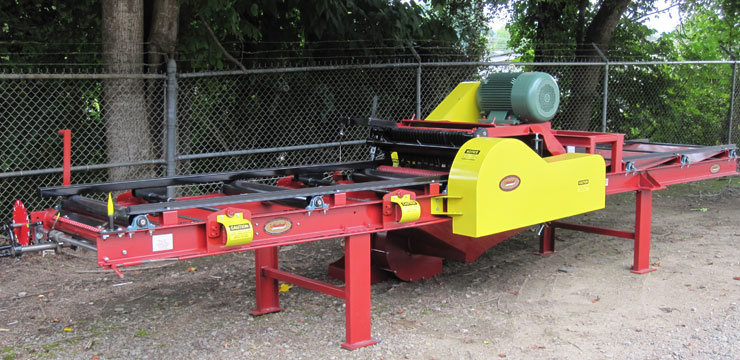

Meadows 4" Board Edgers are available in handset or hydraulic models. The hydraulic edgers are available with manual valves or electric valves with push button controls. Our 4" edgers are available in 30" and 36" widths.

Specifications

  • Frame constructed from 6" steel channel.
  • Standard frame length is 20' with infeed and outfeed table
  • Two 2 3/16" pillow block bearings
  • Mandrel is 2 15/16" diameter high carbon turned, ground and polished steel with two 1/2" keys

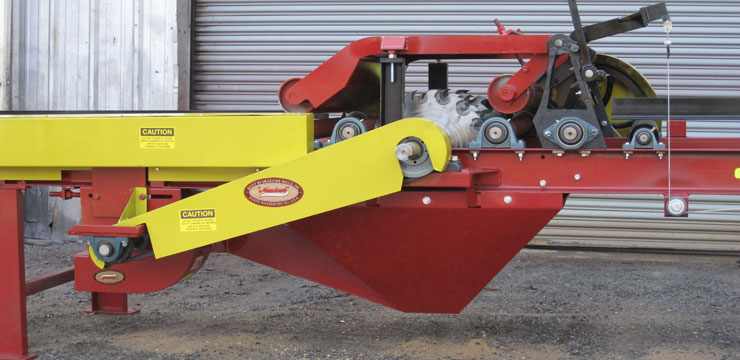

  • Two 2 15/16" diameter corrugated infeed and two 2 15/16" diameter corrugated outfeed bottom rolls connected by a roller chain drive
  • Double V-belt feed from Mandrel to feed pulley
  • Two 5 1/2" diameter overhead press rolls
  • Complete set of anti-kickback fingers with release handle
  • Available in 30" and 36" widths

Available Options

There are several options for edger, including a variable speed hydraulic feed, dial figure scale and saw dust blower to name a few.

Get a complete list of options and configurations by giving us a call.
